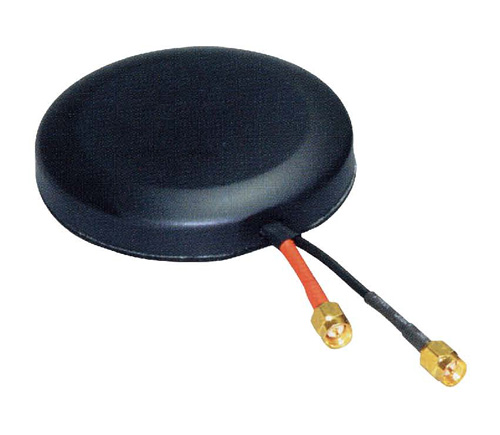

GPS/GSM ANTENNA CH50036
GPS ANTENNA
Dieletric Antenna
• Center Frequency:1575.42MHz±3MHz
• V.S.W.R: 1.5 : 1
• Band Width: ±5MHz
• Impendence: 50 ohm
• Peak Gain:
> 3dBic Based on 7×7cm ground plane
• Gain Coverage:
> -4dBic at -90° < 0 < +90° (over75% Volume)
• Polarization: RHCP
• GSM Antenna
• Center Frequency : 824MHz~894MHz / 1710MHz~1990MHz
880MHz~960MHz / 1710MHz~1990MHz
• V.S.W .R : 2.0:1
• Impendce: 50ohm
Typical gain: 2dB±1dB@900MHz
1dB±1dB@1800MHz
• LNA Gain(Without cable):28dB Typical
• Noise Figure: 1.5dB
• Fil ter Out Band Attenuation (f0=1575.42 Mill):
7 dB Min f0± 20MHz;
20 dB Min f0 ±50MHz:
30 dB Min f0± 100MHz
• V.S.W .R : < 2.0
• DC Volta ge: 2.7V, 3.0V, 3.3V, 5V
• DC curre nt: 5mA , 10mA Max
• Cable: RG174,3 meters or other
• Connector:
SMA/SMB/SMC/BNC/FME/TNC/MCX/MMCX
• Mounting: stiking / Magenetic / screw
