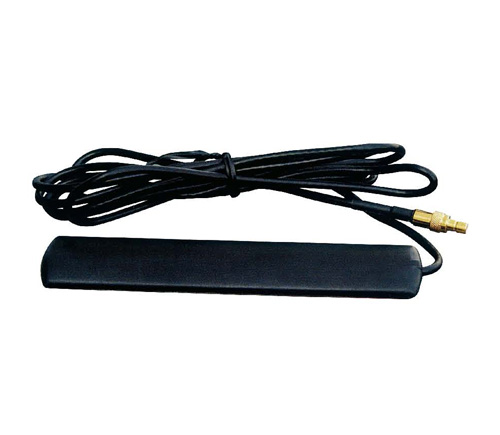

GPS/GSM ANTENNA CH50037
GPS ANTENNA
Dieletric Antenna
• Center Frequency:1575.42MHz±3MHz
• V.S.W.R: 1.5 : 1
• Band Width: ±5MHz
• Impendence: 50 ohm
• Peak Gain:
> 3dBic Based on 7×7cm ground plane
• Gain Coverage:
> -4dBic at -90° < 0 < +90° (over75% Volume)
• Polarization: RHCP
• LNA Gain(Without cable): 28dB Typical
• Noise Figure: 1.5dB
• Filter Out Band Attenuation (f0=1575.42 MHz):
7 dB Min f 0± 20MHz;
20 dB Min f 0 ±50MHz:
30 dB Min f 0± 100MHz
• V.S.W .R : < 2.0
• DC Voltage: 3V . 5V, 3V to 5V
• DC current: 5mA , 10mA Max
• Cable: RG174 5 meters 3 meters
• Connector:
SMA/SMB/SMC/BNC/FME/TNC/MCX/MMCX
• Mounting: Magnetic base or stiking
